The house looks very livable. I love that you have concentrated on creating one nice bath with separate walk in shower and a windowed tub! Since you have already thought of it, I'm going to assume that the attic is for future expansion and cannot be adapted for use as the current "away room." We are also in the process of designing a small house, and we've designated our study as the "away room." Ours will open off the dining room. If you switched the locations of the Study and Bed 1 on the same side, you could put french doors or an extra wide door with etched or decorative glass from the hallway into the right hand corner of the study. This would give you a really long diagonal view through the lounge and out the french doors, and from the lounge through the study to the window at the far end... The study window should be increased in width to match the neighboring window in Bed 1, and it then becomes ripe for a small window seat, either a clip on bay bumping out, or a "built-in" bay using narrow built ins on either side. Or both: build "in" for now, putting file cabinet drawers under the window seat, and angled corner units in for storage, and add the bump out bay later when you know whether your offspring would prefer a really cute desk, or a window seat, or a bed nook. You would, alas, lose the door from Bed 1 into the bath.... but honestly, there are lot of doors into that bathroom already, and that one has substantial collision potential. It might be best to make the single access point that door from the laundry. Either a glass panel set high in the bath room doors or a transome would make it easy to tell when someone is in the loo. Other ideas would be to split the nook under the stairs, so that half the depth opens to the lounge, and the other half to Bed2... with the wall thickness, you probably get close to 600mm or 2' on each side. Add a deep bookcase or other built in, and you're easily at a depth that makes both spaces very tucked in. Lastly, if funds allow a shallow bay window over the kitchen sink would visually expand the kitchen, particularly if you could arrange it so that the counter runs right into the bay.

Hi J Smith, You have an exceeding excellent design for your new home. A few very small suggestions; 1. Reduce the length of the Pantry wall that's pointed at the sink by min. 2' if not more. 2. Consider removing pocket doors to Living Space or widening. 3. Remove the wall on the left side in Bed 1 as you walk in the door. 4. Do you need space for Mechanical's; Furnace, water heater, etc? Best of luck on your new home. Jerome DeMarco ART.chitecture

Hi, Thanks for the response. :) I am following CCC Residential Suburban and Residential Suburban Density Transition Zone. It seems you can build 1m from boundary without having a window facing the boundary. I thought it seemed close, but if it gives me more space on the sunny side of the property then I'm happy. I wasn't sure how worthwhile it was me building interior/external walls into my design. I think a real draftsman would only use my dimensions as a guide and bin my project designs. I've only used the boundary line to design the entire thing, then used some Objects to give a visual guideline.

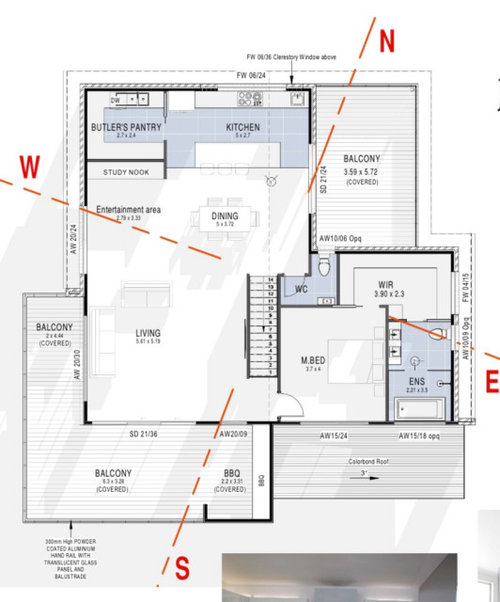

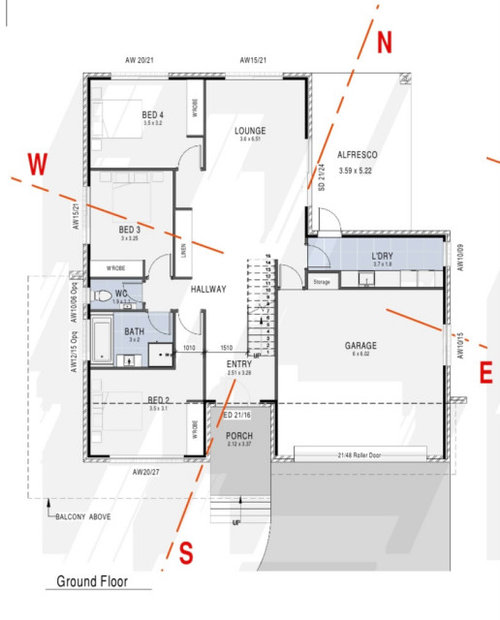

Undecided to go through with the final concept floor plan, for a modern new build home. Stunning views alongside the MB, Kitchen, Dining and Lounge is why these spaces are situated where they are. Can anyone point out any potential flaws or improvements? I have been leaning on the idea of swapping the kitchen with the bedroom, to situate the kitchen within a direct indoor, outdoor flow concept. But this will compromise the current kitchen views.
