Floorplan Dilemma
Hello there,
Could do with some help / feedback / suggestions please…
Designing a new build, and a few challenges we can’t seem to work out.
Main aim is to get a ‘light void’ inside the entrance of the house.
Ideally looking for 2m x 2m before then walking up the stairs or through corridor to the rear of the house.
Current design has upstairs bedrooms on the eastern side and stairs/corridor on the western side, which is desirable. This also places the staircase downstairs on the western side, which is desirable, allowing a ‘feature brick wall’ along the eastern length of the ground floor corridor.
With current stair placement, creates upstairs having the corridor on the western side of the stairs, leading to the need to walk around to the front to gain access to Bedroom 2. This eliminates the ability to have the front area as open space/ light void.
A corridor along the bedrooms would allow Bedroom 2 access from the northern side and stopping the corridor at that point, creating the open void.
The current layout also doesn’t allow a direct door access to upstairs central bathroom from a potential central corridor.
Trying to place stairs on the western side of upstairs central corridor seems to have 2 hurdles;
1. With current stair location, not enough room to have 1m corridor plus 3m wide rooms together on the eastern side and fit in with Res-Code set-back requirements (see below).
2. To push staircase further west would have it encroaching the ground floor bedroom. That said, I could be content with the ground floor bedroom being less than the current 3.5m width.
Property is only 10m wide. We are going boundary to boundary at the front with the garage on one side.

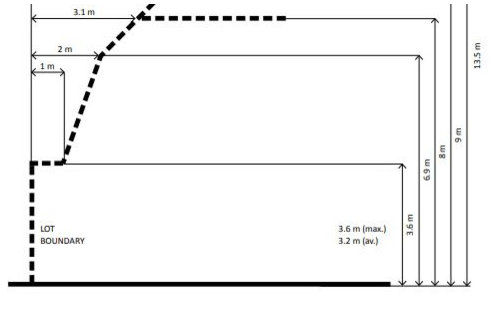

To meet res-code (and avoid applying for additional council approval), we need to cut in from each side by almost 2m on for the upstairs area, hence creating our dilemma for the location of a centrally located staircase .
Of note, existing driveway is on the RHS / eastern side of the block and a tree on the nature strip is on the western side, so moving the garage / driveway is not really an option.
To confirm, the rear of the house faces due North.
Hope that explains it fairly well.
Can anyone see a different layout working better?
Please share any thoughts…
Thanks, DTM
Comments (21)
8 years agoHi Louise. Thanks for your interest.

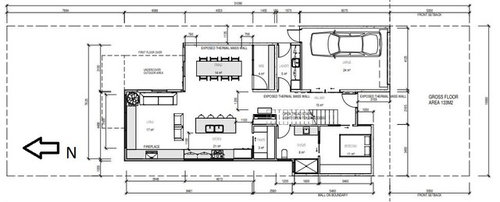

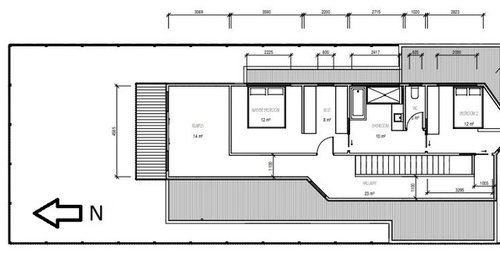

Plans re-posted below, hopefully clearer. Ceiling height looking at 2.7m downstairs, and perhaps 2.4(+) upstairs. Piano, correct. Room between laundry and dining is a walk in cellar - a necessary indulgence. Upstairs living is play room for child from Bedroom 2 / addition bedroom if family expands.
Again, would be interested in any thoughts...
Related Discussions
1940's NZ kitchen - small, awkward-ish layout.
Comments (121)I would suggest you take out the cabinet that is to the right of the stove and use it elsewhere in the house -- perhaps in the bathroom or dining room with a hutch above it. Then, I would suggest you have someone install a lazy susan cabinet in the corner between the sink counter and the stove, meaning you would move the stove down a bit and have a small cabinet/counter top to the right of the stove. I would suggest you have the cabinets refinished in white and then paint the walls a pastel you like. If you would prefer white walls, then add white-painted crown molding and paint the ceiling a light neutral blue, such as Sherwin Williams Niagara Falls Blue. Then, I would suggest you choose a favorite accent color and use this sparingly in accessories like towels, pot holders, small vases or floral arrangements, and a valence above the triple windows. For a genuine 1940s look, you might have white ceramic square tiles with a rectangular red border installed as a back splash behind and above the stove. If you are replacing counter tops, I would suggest a light color such as white with a beige or light grey vein or striation for some sort of pattern. You might be able to find the same color and design in floor tile OR opt for a wood floor as another poster suggested....See MoreShared bathroom, doubles as ensuite, long narrow space! Help!
Comments (13)Thanks houssaon and rinqreation! Funny - hubby has the same 2 door hate! It sounds like I'm being outvoted on the shared ensuite idea. :) We've actually been set on both the configurations you suggested, we moved away from yours houssaon because we really wanted to keep a closed off office space (and hubby built the front deck and landing already for the door at the end of the hallway!). And I don't know why we shifted the door on the bedroom back to the same area, I think it was about having easy access to all the kids bedrooms. But maybe we should shift it back as you suggest rinqreation. Joice, the door at the end of the hallway is the front door, the entrance closest to the street, that you would come to first if you were a visitor. Not totally necessary, but we reinstated it before we decided we wanted the entrance up the stairs (middle bottom) which would be under a carport. Thanks for all your input!! It's really helpful to have some unattached opinions. I'm keen to hear from anyone else on the shared ensuite or 2 door hate question! :)...See MoreNeed help with recovering couch
Comments (93)Oh, okay, may need to clarify some more. If you get a new 2 seater in place of the 2 white chairs, fine, but no blue chair at all next to the 'new' 2 seater. Won't be right with a blue chair too. So what ones are you planning to recover?. If getting rid of part of it, not understanding. 2 different styles placed next to each other won't look right. I wouldn't like old blue fabrics next to new fabrics or next to 2 different styles of furniture. New 2 seater and old blue chair next to each other, not good :)...See MoreCabinet design/style ideas
Comments (0)So we have finally decided on a kitchen design: Taken inspiration from : this is the floor plan. The dinning area will be moved to next to the steps, in front of the alfresco area. The family room will be in front of the kitchen with another outdoor area next to it. But dilemma not is that we cannot decide on plain cabinet doors or shaker style. The colour of the doors will be Satin White with black knobs matching the black granite sink and charcoal glass splash back. The bench top will most likely be something similar to Calcutta Quartz. I like the modern simplicity of plain doors but i don't want it to look too clinical. I like how shaker style adds a bit of character to the whole area, but i don't want it to look too traditional. What do you think? Any other style suggestions?...See More- 8 years ago
- 8 years ago
- 8 years ago
- 8 years ago
based on approximate dimensions i've reduced the extra hallway width upstairs, added the two storey void (or bigger upstairs bed 2 or small study) moved the stairs to the west and rearranged upstairs and down with a central rumpus room or potential extra bedroom and master suite across the rear...the stairs are still open underneath up to the downstairs bathroom door that is enclosed under the stairs to create more bathroom privacy and a generous nook for the piano...swopping the laundry provides a small porch for the garage and laundry with option for security screen on the outside of the porch ...the eastern alfresco will be cooler for afternoon outdoor entertaining (western alfresco creates circulation issues with the kitchen) although the existing dining and living areas could be swopped (btw don't forget the alfresco floor space extends up to the fence for more flexible furniture arrangements)
8 years ago- 8 years ago
- 8 years ago
8 years agolast modified: 8 years agoThat is better use of the space, but I'am thinking that because kensington is in the wine industry he's trying to set up wine tasting with art gallery for specialist /private viewing, so the toilet needs to be separate for this.
Earlier today I did two of my rough sketch's, this makes the bathroom separate to the bedroom and I actually think the down stairs bedroom should be a lounge to be used for the wine gallery function. I would also want a wider grander entrance passage way to add to the gallery function. I have done a similar thing in a past life, would have been better to have seen the angled void in the plans. cheers
8 years agoI'm more interested in the wine area, coming from Marlborough, New Zealand, you would understand lol. Just had to add the pics
PRO8 years ago- 8 years ago
- PRO8 years ago
- 8 years ago
oklouise
