Floor Plan Apps
Hello, can anyone recommend a free easy to use App or programme to help me do a floor plan. Many thanks
Comments (9)
6 years ago

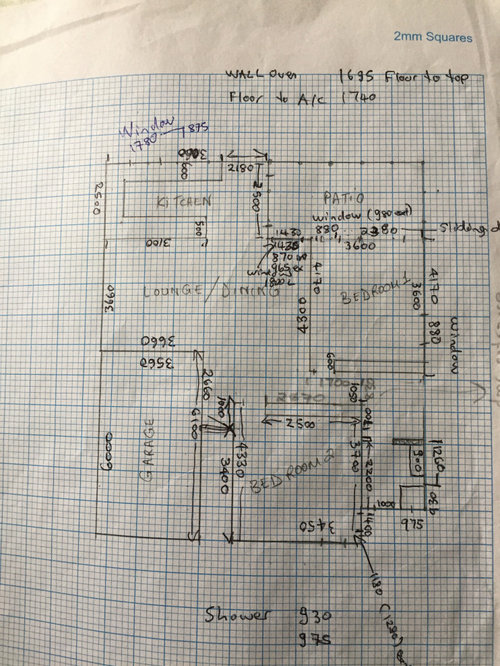

6 years agothe graph paper is a great place to start but doesn't allow for differing thicknesses of internal and external walls and even minor variations in wall covering like tiles on bathroom walls..the best measurements are taken along the whole wall ignoring window, doors, built ins and kitchen cupboards..focus on the main walls first to find the inside size of the rooms and then add the extras details last..if you plan to do a renovation you'll need to later have professional plans drawn up for a development application, site plans, Basix etc so a rough plan of the inside spaces with a 10cm wall will give a reasonable approximation that will have to be fine tuned by an accurate site inspection by whoever does final plans ..my rough draught of your plan shows a basic outline but highlights some questions and discrepancies with measurements that i can't see properly but what's the narrow space between garage and bed 2, what's the small space next to the bathroom and what would you like to add?
Related Discussions
Floor plan confusion?
Comments (0)Blum have spent years studying the most practical and ergonomic workflow for all types of kitchen layouts! Kitchens can be divided into five different zones , shortening distances and keeping everything when and where you need it. Visit blum.com to find our hints and tips for your kitchen renovation....See MoreFloor Plan Ideas
Comments (7)Hi IdaC, I had the pleasure of living in a California Bungalow many years ago now that had almost exactly the same plan as yours apart from a few modifications that your house has had. The living and master bedroom were switched and the ensuite was just a bathroom from the hallway. The problem with the house plan is the blocking of the rear of the house by the kitchen wall to the hallway and so the circulation goes around through the dining. If you want to alter the layout for a more modern lifestyle with good access to the back yard, I would make the living room another bedroom and put in a new long but narrow bathroom occupying some of the current dining room or possibly part of the existing living if you don't mind a smaller bedroom. The new bathroom can be just 1200mm wide having a 1200 long shower against the outside wall with a high window in it and then the toilet and the vanity near the door. Put the plumbing on the new living wall unless you install full length wardrobes on the wall between it and the new front bedroom. Then I'd delete the back bathroom and make that and the laundry into a walkthrough scullery and laundry and keep the outside door. Put a galley kitchen along the central back wall of the house with an island facing a new dining area where your current kitchen is with double glazed doors to the front hallway. Then make the back bedroom and 3/4 dining room, the living room and open that up to the rear yard. Ideally you'd want the living space on the North side of the house and the plumbing areas on the South, but that might be an expense too far. You could build a really great outdoor entertaining space outside the living room that links with the backyard bungalow if that became an overflow living area/man-woman cave!!!! or just a granny flat or office. If you want to do it in two stages, start by builing the new bathroom and opening up the back bedroom and 3/4 dining into the living room. That way you can start with the three bedrooms where they intend to be. Then you can look at doing the kitchen, scullery, laundry and dining when you are ready and either set up a temporary kitchen in the living space or eat out for a few weeks between when the old kitchen is removed and the new one becomes usable. Good luck, Christine....See MoreRenovation help and floor plans are confusing!
Comments (1)Warehouse Stationery are able to print A3 size plans, You can trace over the black lines with a black pen to make it more visible. Andrew...See MoreWhat software/app do people use to plan their Reno?
Comments (0)Looking to plan me renovation and I would like software that will help including render to 3D. Any suggestions?...See More- 6 years ago
- 6 years ago
- 6 years ago
you should be able to make two small bathrooms without changing the bedroom walls but you need to make the two spaces at least the sizes shown to make enough walking space for both bathrooms.. i've included standard sized vanities and showers but allowed 80cm x 80cm for toilets as, although you can buy much smaller toilets, the extra space is needed for knees and elbows... especially when the toilets are squeezed into a corner
adding a washing machine to the kitchen might be possible but possibly not legal and would be expensive to rearrange an existing kitchen unless you're adding all new cabinets so consider adding a European laundry into the garage accessed from the entry or at the end of the patio accessed from the kitchen..jackster17 thanked oklouise
Kate
